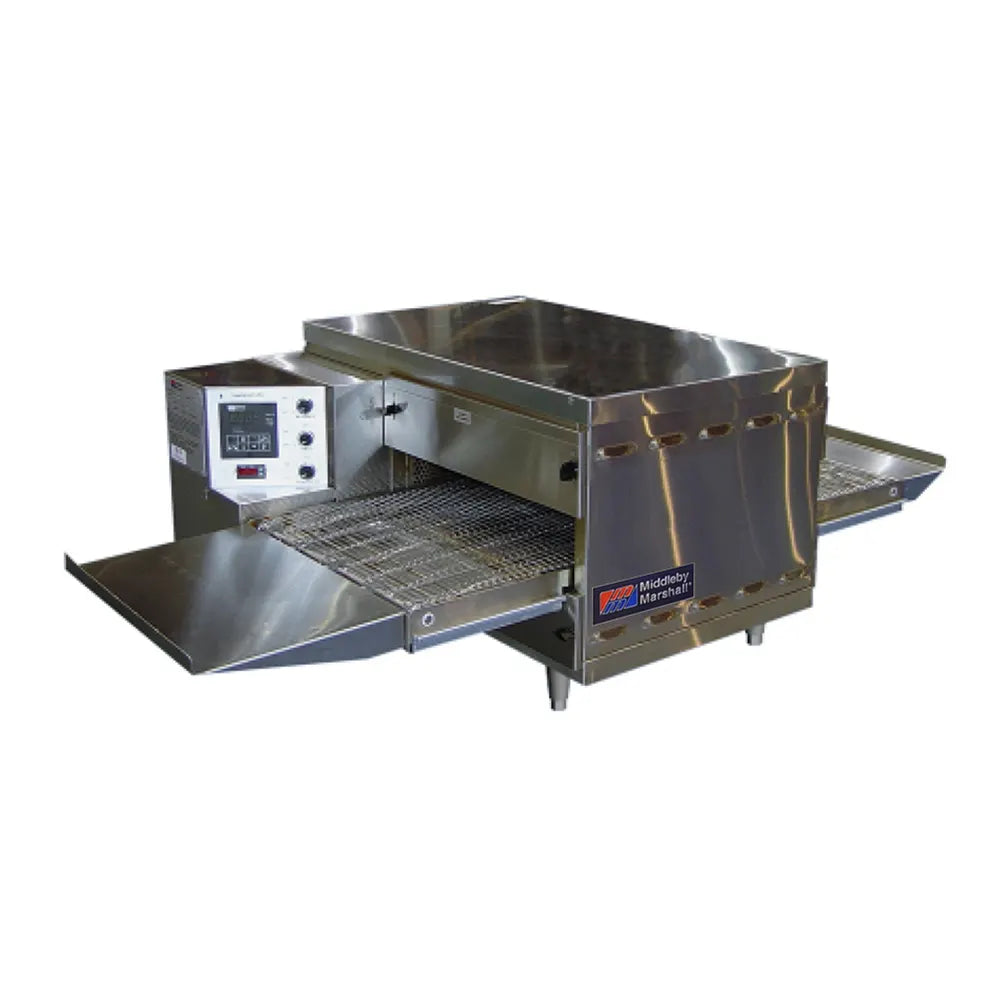

The Middleby Marshall PS520G-1 conveyor oven is powered by LP gas and has a 40,000 BTU capacity. This oven has a single deck with a 20-inch-long baking chamber, and for safe installation on a countertop, it’s mounted on 4-inch legs.

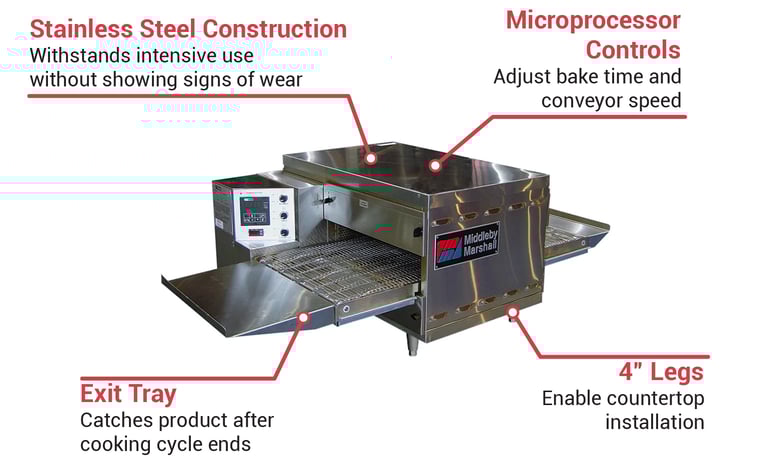

The Middleby Marshall PS520G-1 conveyor oven has microprocessor controls, and with these controls, users can change the direction and speed of the conveyor. After product has been cooked, it exits the oven on a 12-inch tray. To withstand intensive use, the front, sides, top, and interior of this unit are made of stainless steel.

Product Details

• Countertop design
• Single deck
• Direct gas fired
• 20-in.-long cooking chamber
• Microprocessor-controlled bake time and conveyor speed
• Reversible conveyor direction
• 12-in. exit tray
• Front, sides, top, and interior are stainless steel
• Mounted on 4-in. legs
• 40,000 BTU

Dimensions & Utilities

• Belt: 42 in. L x 18 in. W
• Overall: 53⁴/₅ in. W x 37¹/₂ in. D x 21¹/₁₀ in. H
• 15 A
• Powered by LP gas
• 120 V/50/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Middleby Marshall PS520G-1 within the 48 contiguous states.

From The Manufacturer

Countertop conveyor oven, gas, single deck, stackable design up to 3 high (requires stacking kits), 20" long cooking chamber, 18" wide standard single belt (per deck), discrete digital temperature and speed controllers, controllable bake/time conveyor speed, 30 seconds to 12 1/2 minutes time range, 200°-600°F operating temperature range, reversible conveyor direction, left to right feed, single-speed blower motors, includes: legs & optional casters, plug and cord (6 ft. nominal, NEMA L6-20), stainless steel front, sides, top and interior, cETLus, ETL-Sanitation, CE (120 V, 50/60 Hz, 1-ph, 15 Amps, 40,000 BTUs)

Middleby Marshall PS520G-1 Specifications
