Sold Out
Product Details
- Raises water temperature to 180 degrees F for proper sanitization
- Maximum 50 GPH at 40-degree-F rise
- Maximum 29 GPH at 70-degree-F rise
- 6-gal. capacity
- Front swinging panel offers access to probes and elements for servicing
- Calibrated immersion thermostat
- Pre-wired and pre-plumbed at factory
- Durable stainless steel front
- Silver powder-coated hammertone construction is insulated with fiberglass
- Temperature relief valve
- Pilot indicator light
- On/off switch
- Pressure reducing valve
- 2 temperature gauges
- Low-water cut-off protects elements
- High-temperature limit control
- 6-in. legs
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
- Slide mounting brackets available (not included)
Dimensions & Utilities
- 13.06 in. W x 26 in. D x 19.78 in. H
- 10.5 A, 5 kW
- 480 V/60 Hz/1 ph
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/1ph
Hatco C-5 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 50 |
| 70F Recovery (gph) | 29 |
| Amps | 10.5 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 5 |
| Usage Level | Medium Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 13 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Weight | 105.00 |

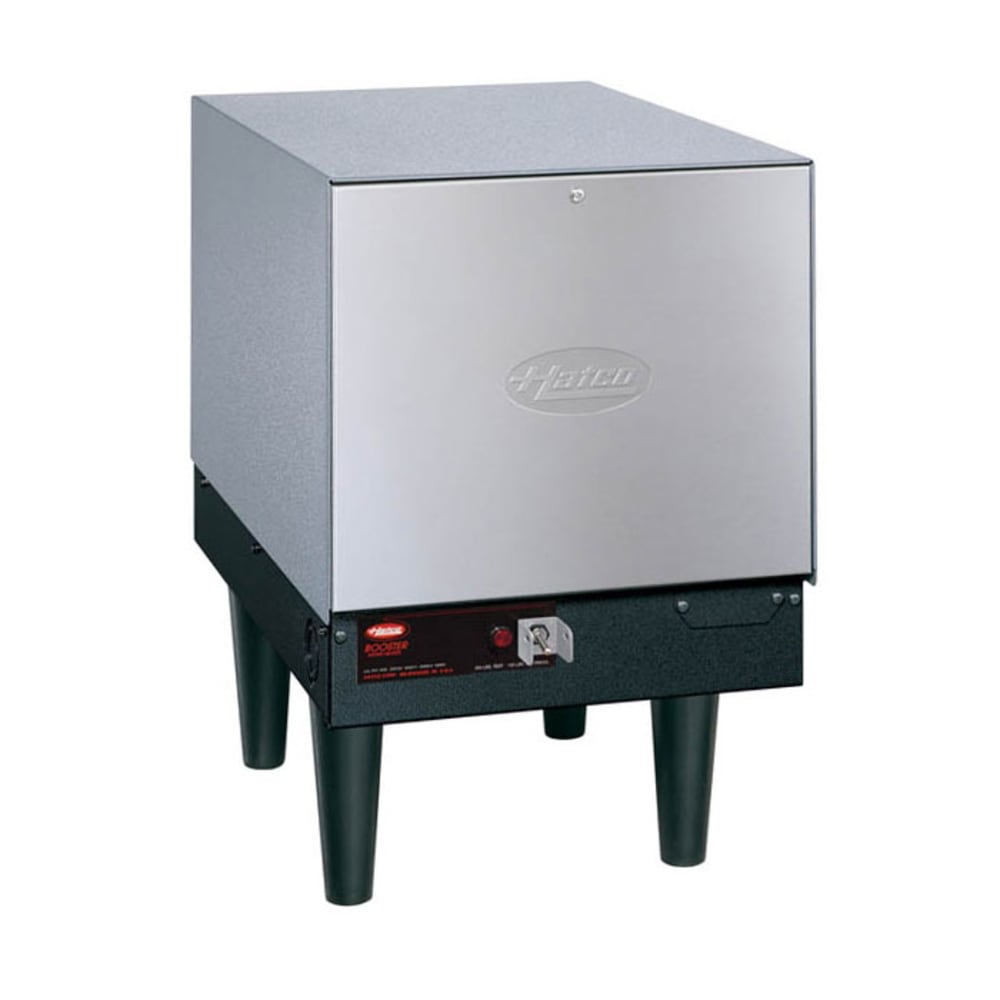

Hatco C-5 Compact Booster Water Heater, 6 Gallon, 5 kW, 480v/1ph
C-5 480/1-01
Out of stock
$2,327.05
