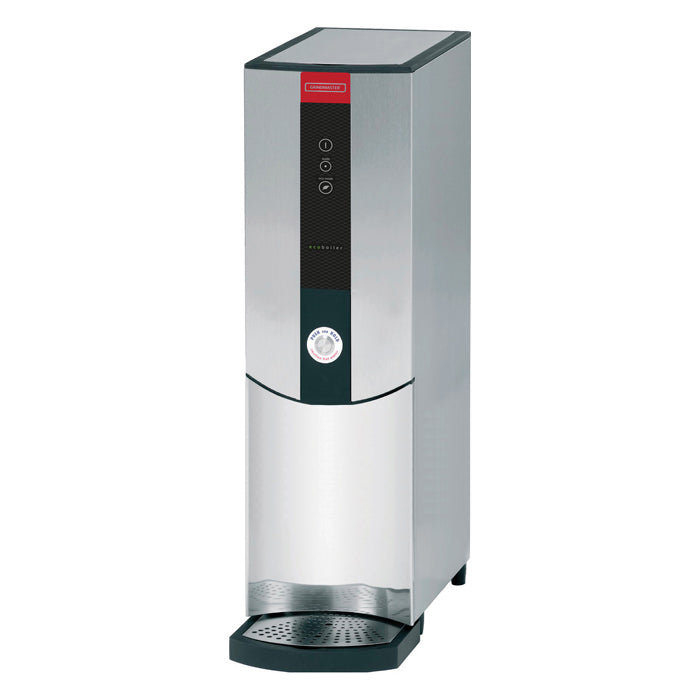

WHT Hot Water Dispenser
Overview: The WHT Hot Water Dispenser is designed to provide an inexhaustible supply of hot water, perfect for restaurants, cafes, and other food service applications. With a range of capacities—1.3, 2.6, and 5.3 gallons—this dispenser is built to maintain a constant temperature from 140°F to 208°F, ensuring your hot beverage service never runs dry.
Key Features:
- Consistent Temperature: Provides hot water at a stable temperature range, ideal for various food and beverage needs.
- Durable Construction: Made with a 316L stainless steel tank, which is more robust and resilient in variable water conditions compared to regular steel.
- Energy Efficient Design: Features reduced radiated heat loss from the tank due to minimal metal-to-metal contact and advanced insulation materials.
- Optimized Usability: The design minimizes buffer volume below the tap, ensuring maximum available water for use.
- Adjustable Temperature Control: Allows for precise adjustments to meet specific temperature requirements.
- Easy Maintenance: The unit is designed for easy descaling, facilitating quick cleaning.
- Eco-Friendly: Constructed from 95% recyclable materials, contributing to sustainability efforts.
- Certifications: NSF and cULus listed, meeting industry standards for safety and performance.
Optional Hands-Free Tap Adapter:
- Convenient Operation: Simple to install, allowing for easy operation using an elbow or cup.
- Hygienic Design: The curved adapter reduces the risk of cup lip contact with the dispensing tip, promoting better hygiene.
Model Specifications:
Model | Description | GPH Output @ 160°F | Initial Draw Capacity (gallons) | Product Dimensions (H x W x D) |
---|---|---|---|---|
WHT5 (2403-000) | 1.3 gallon, 120V/1PH/60HZ, 1.45 kW - NEMA 5-15P | 3.6 | 1.3 | 18.3” x 8.2” x 20.2” |
WHT5 (2403-001) | 1.3 gallon, 240V/1PH/60HZ, 2.9 kW - NEMA L6-20P | 7.2 | 1.3 | 18.3” x 8.2” x 20.2” |
WHT10 (2403-002) | 2.6 gallon, 120V/1PH/60HZ, 1.45 kW - NEMA 5-15P | 3.6 | 2.6 | 23.2” x 8.2” x 20.2” |
WHT10 (2403-003) | 2.6 gallon, 240V/1PH/60HZ, 2.9 kW - NEMA L6-20P | 7.2 | 2.6 | 23.2” x 8.2” x 20.2” |
WHT20 (2403-004) | 5.3 gallon, 120V/1PH/60HZ, 1.45 kW - NEMA 5-15P | 3.6 | 5.3 | 27.2” x 9.4” x 22.3” |
WHT20 (2403-005) | 5.3 gallon, 208V/1PH/60HZ, 2.9 kW - NEMA L6-20P | 7.2 | 5.3 | 27.2” x 9.4” x 22.3” |
2.6 gallon - 240V/1PH/60HZ, 2.9 Kw - NEMA 6-15P. Includes LCD screen for precise temperature control
