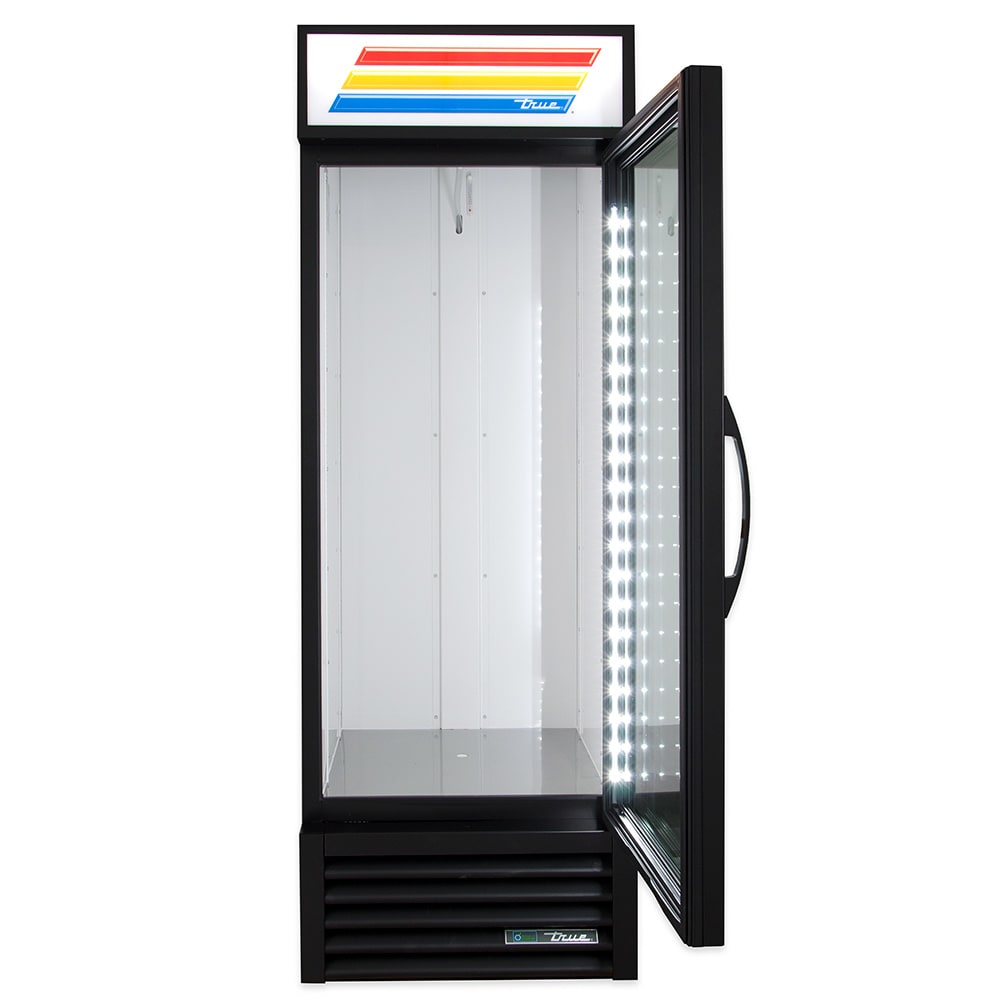

Product Details

• 4 heavy-duty, PVC-coated wire shelves are adjustable on ¹⁄₂-in. increments
• Each shelf comes with 4 chrome-plated shelf clips
• LED lighting illuminates the interior and makes products more visible
• Double-pane, thermal-insulated glass door has an extruded aluminum frame for durability
• Self-closing door helps keep cold air inside
• Magnetic door gasket keeps cold air from escaping the cabinet and removes for cleaning or replacing
• 12-in. extruded handle facilitates opening the door for loading
• Exterior sign panel illuminates to grab the attention of customers
• Drain built into the stainless steel floor simplifies cleaning the interior

Product Features

Cabinet Construction

• Black powder-coated steel exterior hides scratches and dents and will not peel or chip since it is permanent and durable
• White aluminum interior liner brightens the cabinet
• Stainless steel floor is durable
• Entire cabinet is foamed-in-place with polyurethane insulation that keeps cold air inside and gives it structure
• Heavy-duty steel frame rail is black powder coated to resist corrosion

Refrigeration System

• Temperature range: 33-38 degrees F
• Self-contained, capillary tube system uses R290 hydrocarbon refrigerant
• Balanced, high-capacity refrigeration system maintains even temperatures
• Electronically commutated evaporator and condenser fan motors move a consistent volume of air, producing less heat and reducing energy consumption
• Dirt and debris removed from condensing coil with a reverse condensing fan motor
• Epoxy-coated evaporator is corrosion resistant
• Bottom-mounted condensing unit offers easy maintenance access and creates a no-stoop shelf that makes products more visible

Dimensions & Utilities

• Shelves: 22⁹⁄₁₆ in. W x 23¹⁄₄ in. D
• Overall: 27 in. W x 31¹⁄₂ in. D x 78⁵⁄₈ in. H
• 5.4 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord NEMA 5-15P plug

True Refrigeration GDM-23-HC~TSL01 Specifications
