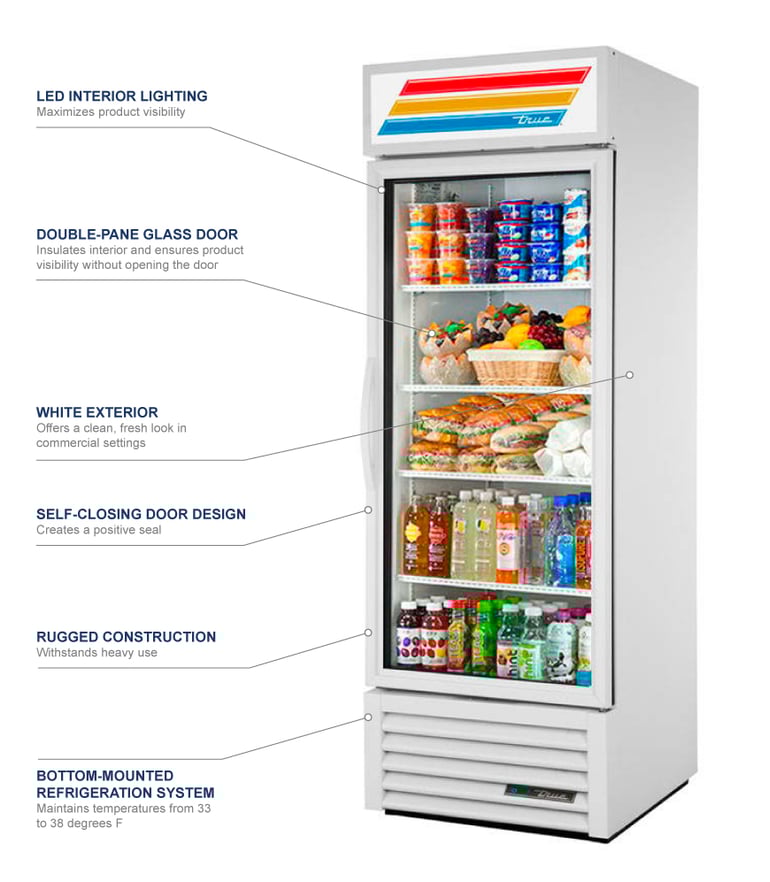

Product Details

• White aluminum interior liner brightens the cabinet
• Stainless steel floor has a built-in drain for simple cleaning
• White powder-coated steel exterior with black door frame and grille
• Foamed-in-place polyurethane insulation keeps cold air inside the cabinet while also giving it structure
• Black powder-coated, heavy-duty steel frame rail is corrosion resistant
• Leg levelers come on the steel frame for uneven flooring
• Illuminated exterior sign panel grabs customers’ attention
• Interior LED lighting increases product visibility
• 4 PVC-coated wire shelves are on ¹⁄₂-in. adjustable increments
• Each shelf has 4 chrome-plated shelf clips
• Shelf support pilasters are made of the same material as the cabinet interior

Product Features

Low-E Glass Door

• Double-pane, thermal-insulated glass door with an extruded aluminum frame for support
• Self-closing door with a positive seal closure system
• Magnetic gaskets are removable for cleaning or replacing
• Gaskets keep cold air from escaping the cabinet
• 12-in. integrated handle facilitates opening the door when loading

Refrigeration System

• Temperature range: 33-38 degrees F
• Self-contained, capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant
• Bottom-mounted condensing unit is easy to clean and maintain while also raising products so they are visible
• Refrigeration system maintains even temperatures
• Condenser and evaporator fan motors move a consistent volume of air that results in motor reliability, energy consumption reduction, and low heat production
• Condensing coil kept clean with a reverse condensing fan motor
• Epoxy-coated evaporator resists corrosion

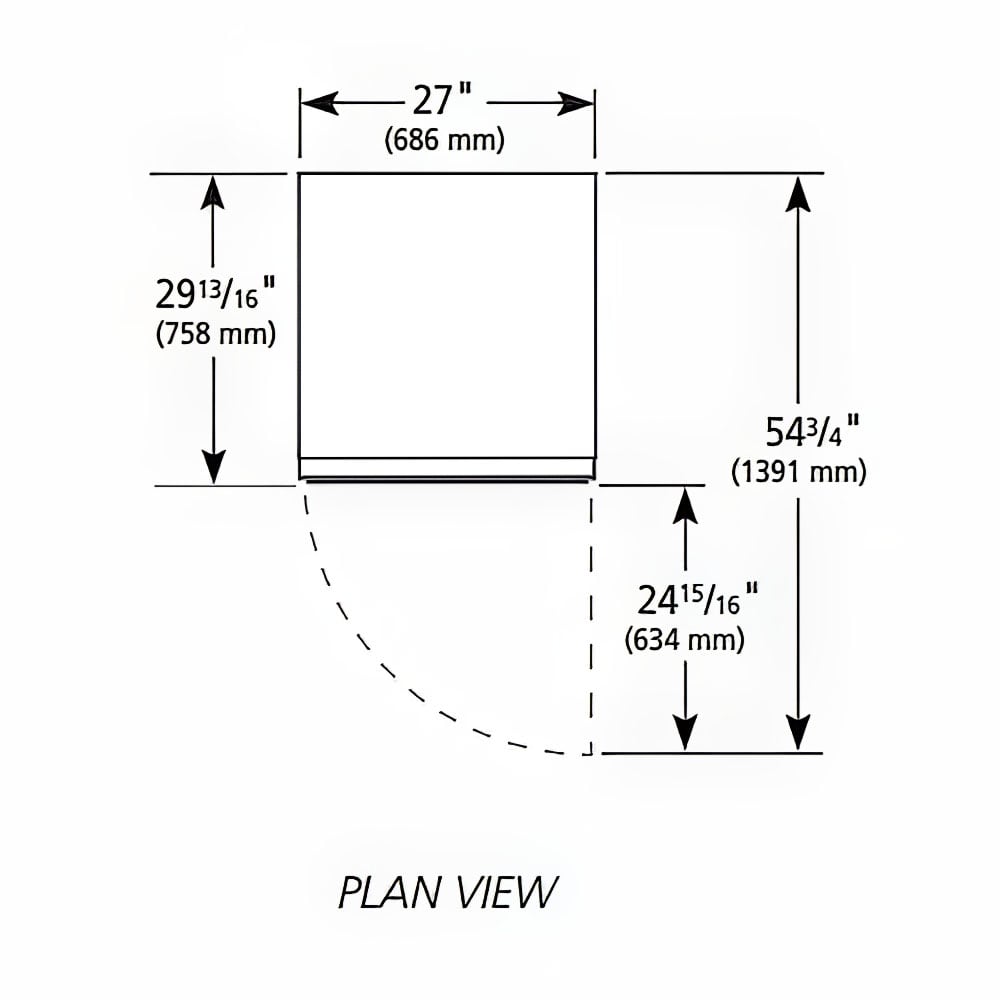

Dimensions & Utilities

• Shelves: 22⁹⁄₁₆ in. W x 23¹⁄₄ in. D
• Overall: 27 in. W x 31¹⁄₂ in. D x 78⁵⁄₈ in. H
• 5.4 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord NEMA 5-15P plug

True Refrigeration GDM-23-HC~TSL01 Specifications
