Product Description

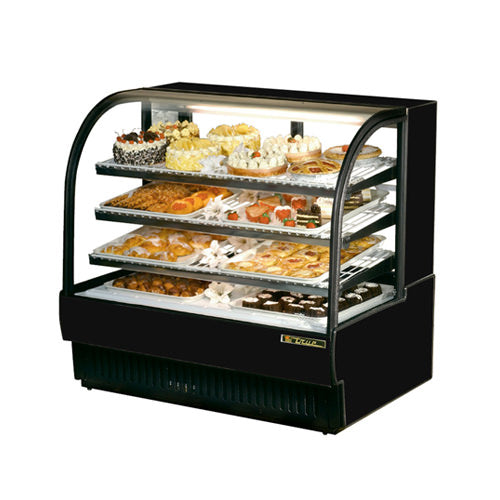

• Design – True’s refrigerated bakery case combines efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of high end desserts and pastries.
• Designed to provide an attractive companion to our “dry” display case.
• Refrigeration  System – Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains 38°F to 40°F (3.3°C to 4.4°C), ideally suited for bakery products.
• Forced-air refrigeration system; sealed, cast iron, self-lubricating evaporator fan motor(s) and larger fan blades give True refrigerated bakery cases a more efficient low velocity, high volume airflow design.
• Condensing unit located behind removable panel in back of unit; slides out for easy cleaning and maintenance.
• Cabinet Construction – Exterior – white laminate front and side panels. Color options available at no charge.
• All laminate (and stainless option) ships separately from unit and is field installed. Stainless steel top. Black front and rear grills and trim. Template kit available at no charge for field customization of laminate.
• Interior – NSF approved white aluminum sides and top; high impact plastic floor with coved corners.
• Insulation – entire cabinet structure is foamed-inplace using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with leg levelers.
• Curved Front Display Glass – Insulated, double pane curved glass front and side panels provide extra large viewing area to maximize bakery product presentation. Exterior pane is tempered for safety.
• Front glass tilts forward for easy cleaning.
• Rear Doors – “Low-E”, double pane thermal glass door assemblies with extruded aluminum frames. The latest in energy efficient technology.
• Each door fitted with 12″ (305 mm) long moulded plastic handle.
• Self closing doors. Positive seal, torsion type closure system.
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
• Shelving – Three (3) adjustable, lighted, heavy duty PVC coated wire shelves 443/8″L x 225/32″D (1128 mm x 563 mm). Shelving system is cantilevered and angle can be adjusted to maximize presentation.
• Each shelf supports a maximum weight of 150 lbs. (69 kg).
• Pan Capacity – Cabinet holds eight (8) 18″L x 26″D (458 mm x 661 mm) display pans (2 per level) and four (4) 9″L x 26″D (229 mm x 661 mm) display pans (1 per level). Pans supplied by others.
• Lighting – Cabinet equipped with four (4) light sources for maximum product display; three (3) shelf mounted and one (1) cabinet mounted. Fluorescent lamps are low UV emitting to enhance product appearance and increase shelf life.
• Safety shielded lighting tubes assure longer, brighter, shadow-free product illumination.
• Model Feature – Evaporator is epoxy coated to eliminate the potential of corrosion.
• Recessed exterior light switch and thermostat control.
• NSF-7 compliant for open food product.
• Electrical – Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 20 amp dedicated outlet. Cord and plug set included.
