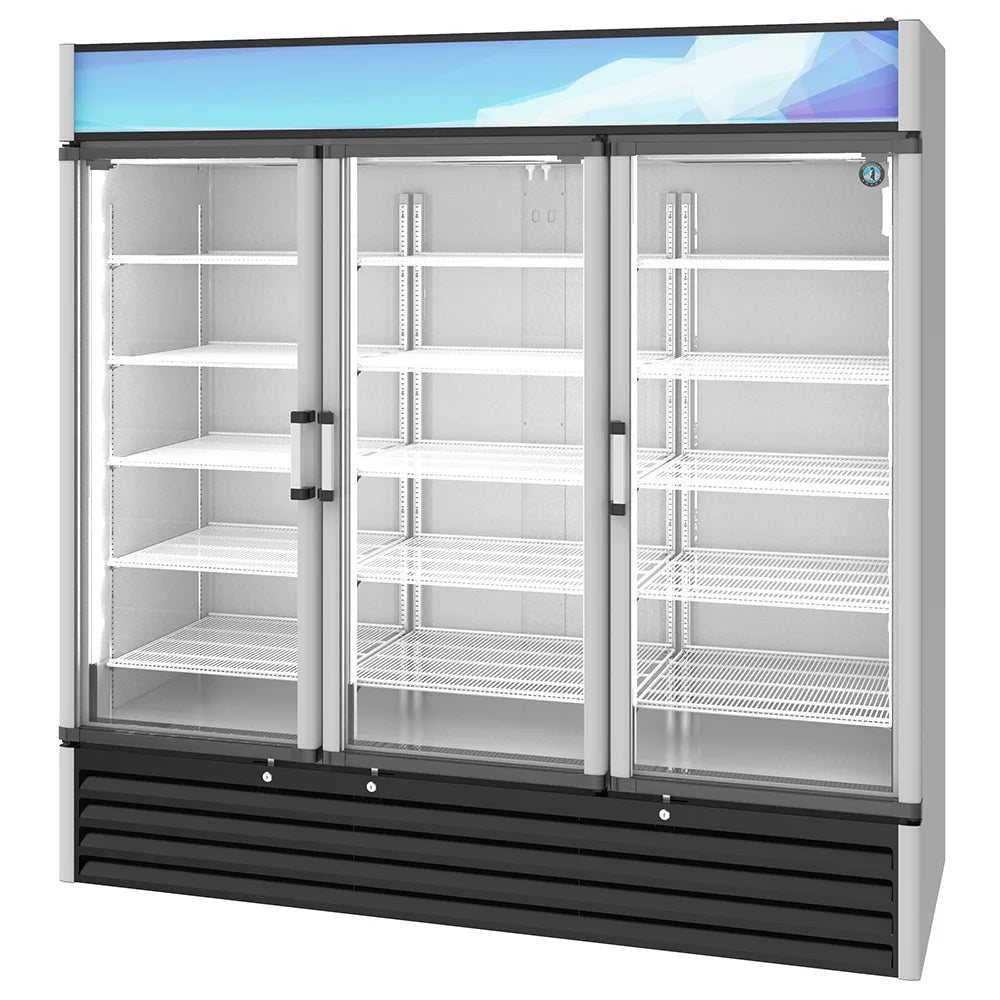

Hoshizaki RM-65-HC Description
The Hoshizaki RM-65-HC refrigerated merchandiser, part of the RM Series, is built for high-volume product display with a three-section reach-in design and a 56.04-cubic-foot refrigerated capacity. It has three glass doors with left- and right-hinge configurations, each equipped with locks for security. The LED-illuminated canopy and vertical LED lighting enhance product visibility, while 15 adjustable white epoxy-coated shelves can be positioned in 1/2-inch increments. The exterior is constructed of silver-painted aluminum, and the interior features a white steel finish with a stainless steel floor.
The Hoshizaki RM-65-HC glass merchandiser operates with a bottom-mounted, self-contained refrigeration system that circulates cold air evenly through forced-air cooling. A digital controller with a temperature display and high/low alarms ensures precise monitoring, while an automatic electric defrost system prevents ice buildup. The hot gas loop minimizes condensation on the cabinet’s front edge, and heavy-duty self-closing hinges help maintain internal temperatures.
Product Details
- RM Series
- 56.04-cu.-ft. overall capacity
- 3 sections
- Constructed of silver-painted aluminum
- Reach-in design
- 3 locking glass doors with left- and right-hinge configurations
- White steel interior with stainless steel floor
- 15 adjustable white epoxy-coated shelves (5 per section)
- 1/2-in. increment adjustments
- LED interior lighting and LED-illuminated canopy
- Hot gas loop minimizes condensation
- Self-closing door hinges
- 2-in. leveling legs
Refrigeration System
- Bottom-mounted, self-contained refrigeration system
- Forced-air cooling
- Front-breathing design
- R290 hydrocarbon refrigerant
- Electronic controller with digital display
- High/low temperature alarm
- Automatic condensate evaporator
- Evaporator coil
- Time-initiated automatic defrost system
- Automatic electric defrost
- Temperature holding range: 28-40 degrees F
Dimensions & Utilities
- Interior: 731/4 in. W x 225/8 in. D x 607/16 in. H
- Shelf dimensions:
- Center shelf: 273/10 in. W x 217/10 in. D
- Left and right shelves: 222/5 in. W x 217/10 in. D
- Overall: 78 in. W x 293/4 in. D x 7815/16 in. H
- (2)1/3 HP compressors
- 8.2 A, 5.67 kW
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
Hoshizaki RM-65-HC Specifications
Spec Attribute Spec Value Manufacturer Hoshizaki Color Silver Compressor Location Bottom Cubic Feet 56.04 Depth (in) 29.75 Door Design Swing Door Type Glass Height (in) 78 Hertz 60 Hinge Configuration Left/Right NEMA 5-15P Phase 1 Product Display Refrigerators Product Type Commercial Refrigeration Rating Best Refrigerant R290 (Hydrocarbon) Sections 3 Series RM Series Special Features LED Lighting Special Features Lit Signage Area Special Features Self Contained Voltage 115 Warranty 3-year Parts & Labor; 5-year Compressor Parts Width (in) 78 Weight 800.00
