Vacuum Shuttle Brewer Series

Product Overview

The Vacuum Shuttle Brewer Series offers state-of-the-art coffee brewing solutions for commercial settings. Available in single and twin models, these brewers are designed to meet the Golden Cup Standard as defined by the Specialty Coffee Association, ensuring the highest quality coffee experience. Ideal for busy environments, these models brew into 1.5-gallon (5.7 L) vacuum shuttles and are available with or without stands.

Key Features

• Versatile Brewing Options:

  • Single and twin models brew into 1.5-gallon (5.7 L) vacuum shuttles.
  • Available with or without stands for flexible installation.

• Precision Brewing Technology:

  • Digitally controlled with PrecisionBrew Technology for optimal brewing quality.

• Multiple Brew Volumes:

  • Three independent brew volumes (0.5, 1.0, 1.5 gallons) to accommodate peak periods while minimizing waste during quieter times.

• Expanded Beverage Offerings:

  • Twin model allows for brewing two different coffee varieties simultaneously in side-by-side dispensers.

• User-Friendly Interface:

  • Advanced touchscreen digital interface simplifies operation and brewing processes.

• Self-Diagnostic Alerts:

  • Built-in self-diagnostic alerts reduce the need for troubleshooting and unnecessary service calls.

• Minimal Training Required:

  • Icon-driven programming makes it easy for staff to operate with minimal training.

• Safety Features:

  • Shuttle sensors ensure brewing cannot commence unless the server is correctly aligned, and the brew basket is locked during the brew cycle.

• Robust Heating Capacity:

  • Each brew head is equipped with a 3.2-gallon (12.1 L) heating tank for consistent hot water availability.

Model Specifications

PBC-1V (Single Brewer without Stand)

• Brew Volumes: 0.5, 1.0, 1.5 gal (1.9, 3.8, 5.7 L)
• Electrical Requirements: 240V / 7.0 kW, 60Hz, 1 Ph
• Product Dimensions (H x W x D): 33.56” x 9.13” x 19.13” (84 cm x 23 cm x 49 cm)
• Shipping Dimensions (H x W x D): 34.88” x 14.13” x 25.75” (89 cm x 36 cm x 65 cm)
• Ship Weight: 50 lbs. (22.7 kg)

PBC-2V (Twin Brewer without Stands)

• Brew Volumes: 0.5, 1.0, 1.5 gal (1.9, 3.8, 5.7 L)
• Electrical Requirements: 240V / 7.0 kW, 60Hz, 1 Ph
• Product Dimensions (H x W x D): 33.56” x 18.13” x 19.13” (84 cm x 46 cm x 49 cm)
• Shipping Dimensions (H x W x D): 34.88” x 23.13” x 25.75” (89 cm x 59 cm x 65 cm)
• Ship Weight: 80 lbs. (36.3 kg)

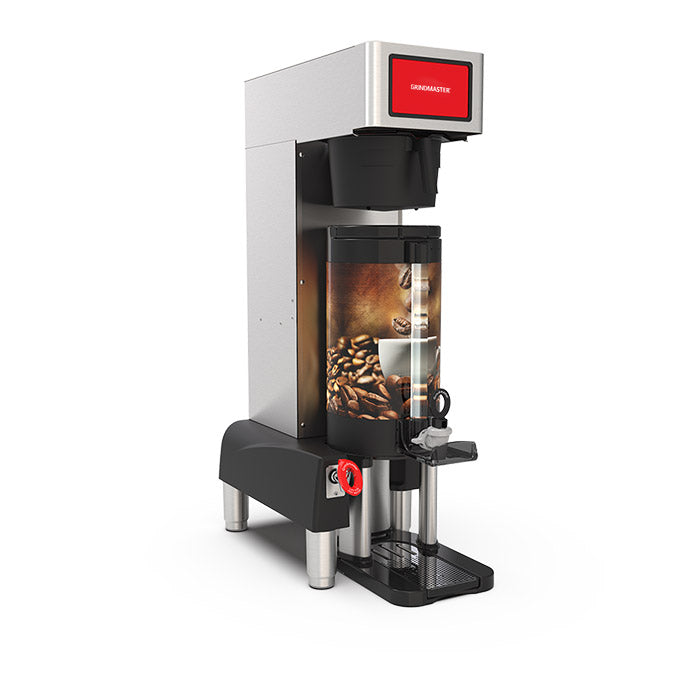

PBC-1VS (Single Brewer with Stand)

• Brew Volumes: 0.5, 1.0, 1.5 gal (1.9, 3.8, 5.7 L)
• Electrical Requirements: 240V / 7.0 kW, 60Hz, 1 Ph
• Product Dimensions (H x W x D): 35” x 12.3” x 19.13” (89 cm x 31 cm x 49 cm)
• Shipping Dimensions (H x W x D): 35.88” x 17.13” x 25.75” (91 cm x 44 cm x 65 cm)
• Ship Weight: 85 lbs. (38.6 kg)

PBC-2VS (Twin Brewer with Stands)

• Brew Volumes: 0.5, 1.0, 1.5 gal (1.9, 3.8, 5.7 L)
• Electrical Requirements: 240V / 7.0 kW, 60Hz, 1 Ph
• Product Dimensions (H x W x D): 35” x 21.75” x 19.13” (89 cm x 31 cm x 49 cm)
• Shipping Dimensions (H x W x D): 35.88” x 26.13” x 25.75” (91 cm x 66 cm x 65 cm)
• Ship Weight: 60 lbs. (27.2 kg)

• Electrical 240V / 7000W / 60Hz / 1 PH
• Product Dimension in inches 35 x 12.3 x 19.13
• Ship Dimensions H x W x D 35.88 x 17.13 x 25.75
• Ship Weight 60
