Vacuum Shuttle Brewer Series

Overview

The Vacuum Shuttle Brewer Series is designed to elevate your coffee brewing experience with cutting-edge technology and exceptional performance. Available in both single and twin models, these brewers accommodate 1.5-gallon (5.7 L) vacuum shuttles and are perfect for any commercial setting. Choose from models with or without stands to suit your specific needs.

Key Features

• Precision Brewing Technology: Digitally controlled brewing with PrecisionBrew Technology guarantees the highest quality coffee, adhering to the Specialty Coffee Association's Golden Cup Standard.
• Flexible Brewing Volumes: Three independent brew volumes (0.5, 1.0, and 1.5 gallons) allow you to efficiently manage busy rush hours while minimizing waste during slower periods.
• Diverse Beverage Options: The twin model features two side-by-side dispensers, enabling the brewing of different coffee varieties simultaneously.
• User-Friendly Interface: An advanced touchscreen digital interface simplifies brewing and operations for a seamless experience.
• Self-Diagnostics: Built-in self-diagnostic alerts on the touch display eliminate unnecessary service calls and troubleshooting.
• Minimal Training Required: Icon-driven programming reduces the training time needed for staff.
• Safety Mechanisms: Shuttle sensors prevent brewing if the server is misaligned or not in place, and the brew basket is securely locked during brewing.
• Robust Heating Capacity: Each brew head includes a 3.2-gallon (12.1 L) heating tank, ensuring a consistent supply of hot water.

Specifications

PBC-1V (Single Brewer, No Stand)

• Brew Volumes: 0.5, 1.0, 1.5 gal (1.9, 3.8, 5.7 L)
• Electrical: 240V / 7.0 kW, 60Hz, 1 Ph
• Dimensions (H x W x D): 33.56” x 9.13” x 19.13” (84 cm x 23 cm x 49 cm)
• Shipping Dimensions: 34.88” x 14.13” x 25.75” (89 cm x 36 cm x 65 cm)
• Weight: 50 lbs. (22.7 kg)

PBC-2V (Twin Brewer, No Stands)

• Brew Volumes: 0.5, 1.0, 1.5 gal (1.9, 3.8, 5.7 L)
• Electrical: 240V / 7.0 kW, 60Hz, 1 Ph
• Dimensions (H x W x D): 33.56” x 18.13” x 19.13” (84 cm x 46 cm x 49 cm)
• Shipping Dimensions: 34.88” x 23.13” x 25.75” (89 cm x 59 cm x 65 cm)
• Weight: 80 lbs. (36.3 kg)

PBC-1VS (Single Brewer, With Stand)

• Brew Volumes: 0.5, 1.0, 1.5 gal (1.9, 3.8, 5.7 L)
• Electrical: 240V / 7.0 kW, 60Hz, 1 Ph
• Dimensions (H x W x D): 35” x 12.3” x 19.13” (89 cm x 31 cm x 49 cm)
• Shipping Dimensions: 35.88” x 17.13” x 25.75” (91 cm x 44 cm x 65 cm)
• Weight: 85 lbs. (38.6 kg)

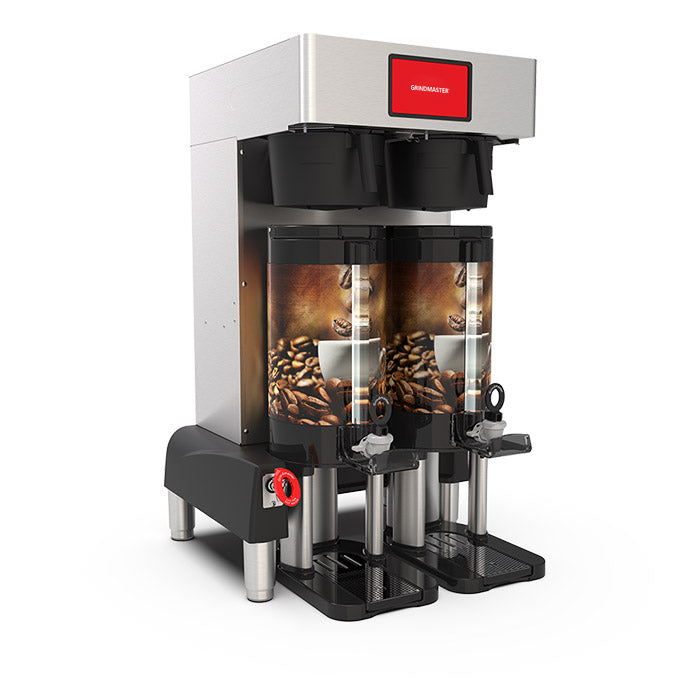

PBC-2VS (Twin Brewer, With Stands)

• Brew Volumes: 0.5, 1.0, 1.5 gal (1.9, 3.8, 5.7 L)
• Electrical: 240V / 7.0 kW, 60Hz, 1 Ph
• Dimensions (H x W x D): 35” x 21.75” x 19.13” (89 cm x 31 cm x 49 cm)
• Shipping Dimensions: 35.88” x 26.13” x 25.75” (91 cm x 66 cm x 65 cm)
• Weight: 60 lbs. (27.2 kg)

• Electrical 240V / 7000W / 60Hz / 1 PH
• Product Dimension in inches 35 x 21.75 x 19.13
• Ship Dimensions H x W x D 35.88 x 26.13 x 25.75
• Ship Weight 90
