Product Details

• 556-lb. daily ice production capacity
• 480-lb. AHRI-certified daily ice production capacity
• Condenser is air cooled
• Removable air filters
• Crescent-cube ice size: 1.125 in. x 1.5 in. x 0.5 in.
• Quick-cleaning parts that snap into place
• System self-adjusts to counteract changing conditions
• CycleSaver™ design reduces the number of cycles each day
• Durable, rust-resistant stainless steel exterior
• Plastic louvers
• H-GUARD Plus antimicrobial protection reduces mold, mildew, and bacteria
• EverCheck™ system alerts users of system issues with beep patterns
• Cools with R404A refrigerant
• Cleaning cycle
• Ice bin sold separately
• 6,600 BTU

Product Features

Required Operating Conditions

• Ambient air temperature: 45-100 degrees F
• Incoming water temperature: 45-90 degrees F
• Incoming water pressure: 10-133 PSIG
• Clearances: 6 in. on both sides, 6 in. behind, and 6 in. above
• Copper water tubing with a minimum 0.25-in. inner dia. for water supply
• Hard pipe with a minimum 0.75-in. inner dia. for draining

Dimensions and Utilities

• 22 in. W x 27.375 in. D x 28 in. H
• 10.6 A, 4.68 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

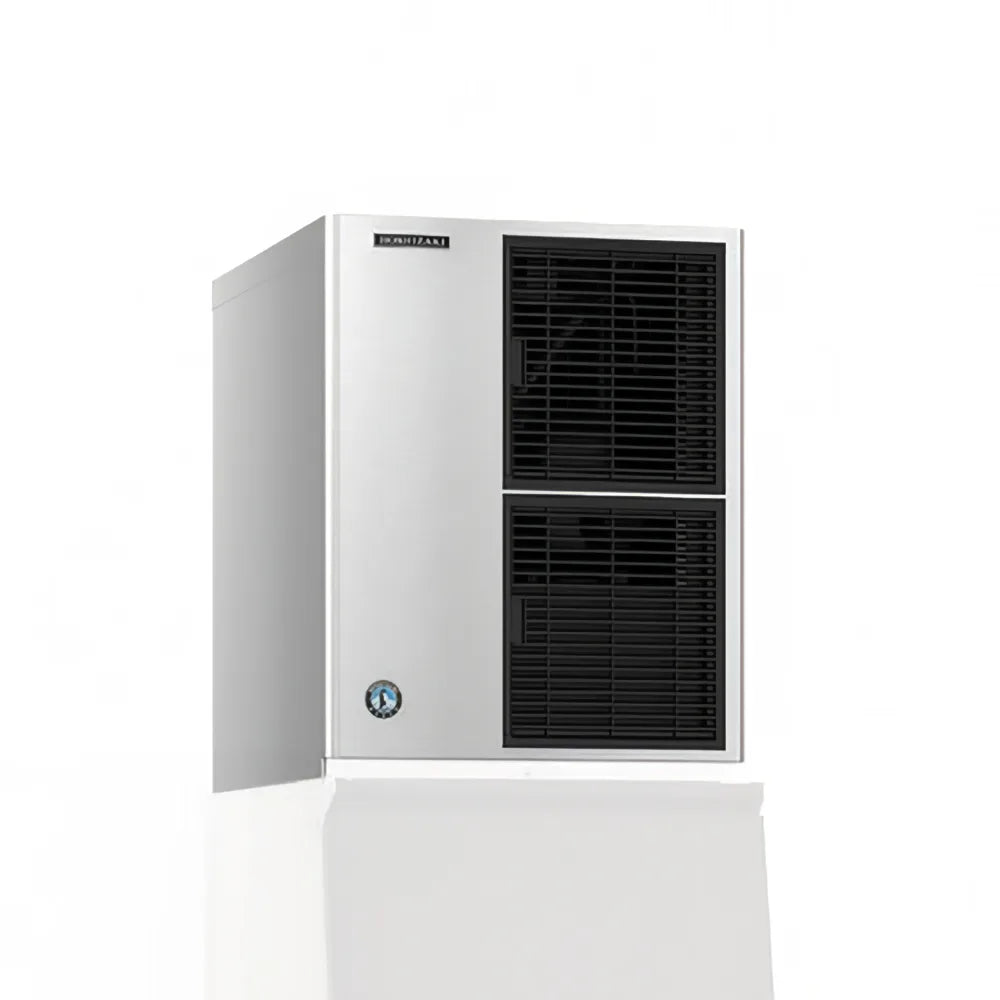

Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 556 lb/24 hours at 70°/50° (480 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 10.6 amps, NSF, UL, ENERGY STAR®

Hoshizaki KM-520MAJ Specifications
