Product Details

• Part of the KM EDGE ice machine series
• 665-lb. maximum daily ice production
• 617-lb. AHRI-certified daily ice production
• CycleSaver design creates more ice in fewer cycles than similar units
• Creates crescent ice
• Ice cube size: 1¹⁄₂ in. x 1¹⁄₈ in. x ¹⁄₂ in. radius
• Self-diagnostic program accounts for changes in the environment
• EverCheck system uses audible alarms to diagnose issues and streamline service calls
• H-GUARD Plus® antimicrobial agent in key components
• Stainless steel, double-sided evaporator
• Refrigeration system uses R404A refrigerant
• Condenser is cooled by fans
• Removable, reusable air filter
• Durable construction with removable panels for service access
• Parts snap in and out of place
• Ice bin sold separately
• 8,000-BTU heat transfer capacity

Product Features

Ideal Operating Conditions

• 6-in. clearance on the top, sides, and back
• Ambient air temperature: 45-100 degrees F
• Incoming water temperature: 45-90 degrees F
• Water pressure: 10-113 PSIG

Dimensions & Utilities

• 26 in. W x 27 in. D x 34.2 in. H
• 15.2 A, 5.12 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

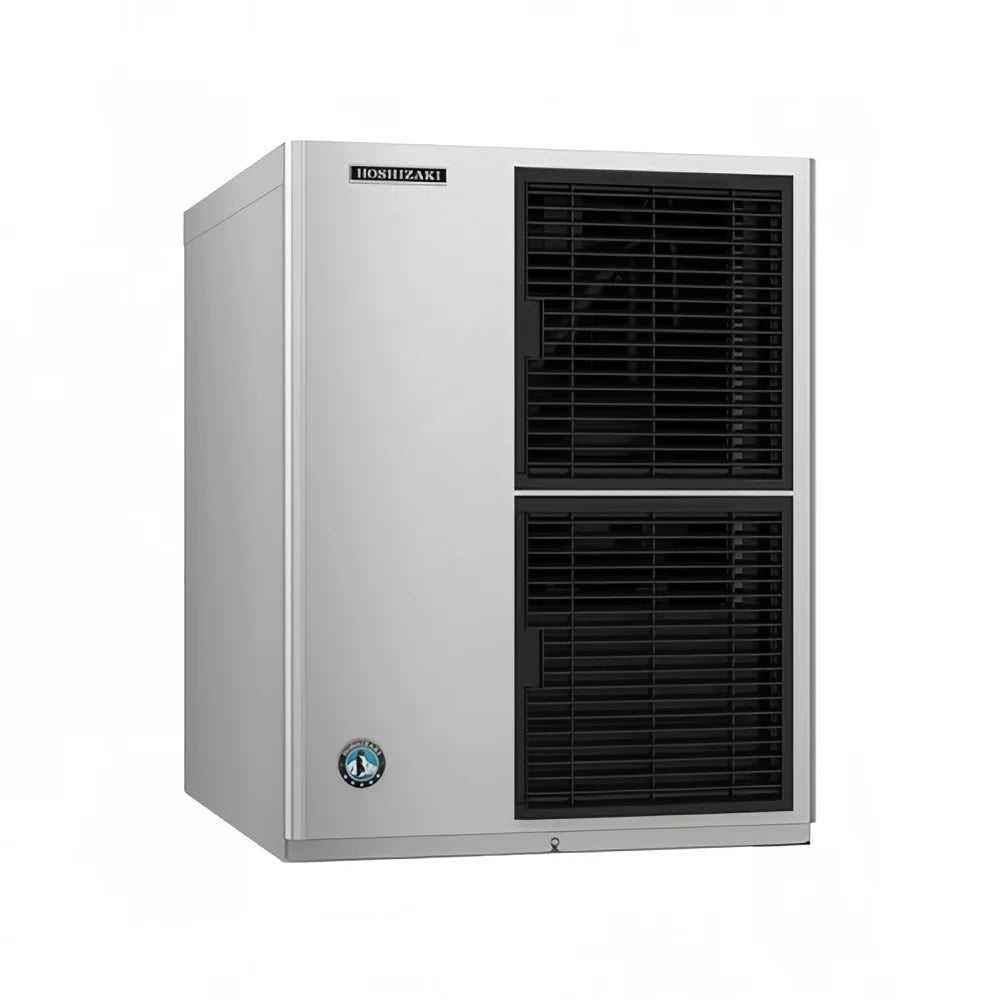

Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 665 lb/24 hours at 70°/50° (617 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube Style, R-404A refrigerant, 115v/60/1-ph, 15.2 amps, NSF, UL

Hoshizaki KM-660MAJ Specifications
