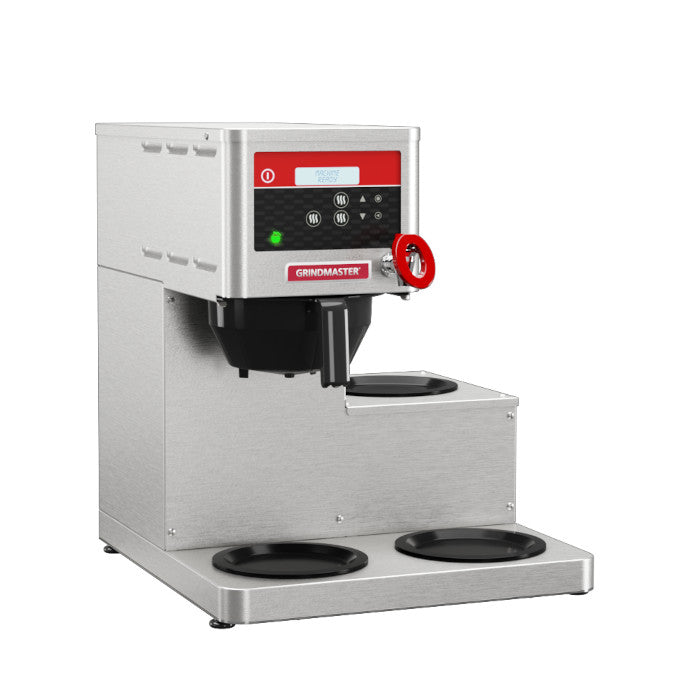

Model B-3 Digital Decanter Brewer

The Model B-3 is a single, digitally controlled decanter brewer designed for precision and efficiency in coffee brewing. With advanced features that enhance the brewing process, this brewer is ideal for both commercial and home use.

Key Features:

• Precise Brew Temperature Control: Maintains brew temperature to within +/- 0.5°C (1°F), ensuring optimal coffee extraction.

• Programmable Extraction Settings: Customize the number of pulses, pulse-on, and pulse-off times to extract more solids (TDS) from the coffee for a richer flavor profile.

• Easy Brew Volume Setting: Utilize “teach” mode to set the brew volume, eliminating the need for trial-and-error adjustments.

• Temperature Optimization: Prevents brewing until water reaches the ideal brew temperature, reducing coffee waste and improving quality.

• Lockable Settings: Brewer settings can be locked to prevent tampering, ensuring consistent coffee flavor and customer satisfaction.

• Energy Efficiency: Features an energy-saving option to shut off the tank heater after a period of inactivity.

• Safety Features: Warmers automatically turn off after a user-defined time, preventing decanter damage, scalding coffee, and potential safety hazards.

• Wake-Up Time Function: Set a specific time for the unit to begin heating, ensuring coffee is ready when you are.

• Convenient Power Control: A front power option allows users to shut off heaters and warmers without reaching behind the brewer.

• Half Brew Function: Prepare half the volume to conserve water and energy while minimizing coffee waste.

• Sleek Design: Constructed from stainless steel with rounded corners and an attractive control panel, the brewer fits seamlessly into any setting.

• User-Friendly Interface: The operator interface features universally recognizable symbols for ease of use, regardless of language.

• Easy Maintenance: Smooth design of the interface simplifies cleaning and sanitization of the contact area.

• Preventative Maintenance Tracking: The brewer counts brew cycles, helping to schedule maintenance and reduce equipment downtime.

Model Options:

• B-3-120V: 120V / 1825W / NEMA 5-15P - 28 lbs (13 kg)
• B-3-240V: 240V / 3825W / NEMA 6-20P - 28 lbs (13 kg)
• B-3WR-120V: 120V / 1825W (Right Side Warmers) - 34 lbs (14 kg)
• B-3WR-240V: 240V / 3825W (Right Side Warmers) - 34 lbs (14 kg)
• B-3WL-120V: 120V / 1825W (Left Side Warmers) - 34 lbs (14 kg)
• B-3WL-240V: 240V / 3825W (Left Side Warmers) - 34 lbs (14 kg)

Dimensions:

• Product Dimensions (H x W x D):

  • B-3: 19-3/16” x 8-1/16” x 18-5/16” (49 cm x 20 cm x 47 cm)
  • B-3WR/B-3WL: 19-3/16” x 16-1/16” x 18-5/16” (49 cm x 41 cm x 47 cm)

• Ship Dimensions (H x W x D):

  • B-3: 22-1/2” x 24-1/2” x 9-1/2” (57 cm x 62 cm x 24 cm)
  • B-3WR/B-3WL: 22-1/2” x 24-1/2” x 17-1/2” (57 cm x 62 cm x 45 cm)

Additional Features:

• Hot Water Faucet: Conveniently located for quick preparation of tea, soup, and cereal.

• Electrical 240V / 3825W / 16 A / 1 Ph / NEMA 6-20P
• Product Dimension in inches 19-3/16 x 16-1/16 x 18-5/16
• Ship Dimensions H x W x D 22-1/2 x 24-1/2 x 17-1/2
• Ship Weight 34
